Digital Multimeter 9999 T-RMS 3.5"LCD Color Display DC AC Voltage Capacitance Ohm Diode multimetro

color
S7
S9CL
S10
S11 Black
S11 Red
S11 Tool Kits
Price
$72.96
Quantity
WORLDWIDE EXPRESS SHIPPING AVAILABLE. *Estimated delivery time 7-25 Business days
Free shipping on orders over $49.00.
We accept returns of unworn items within 15 days.
LIMITED TIME OFFER:First time purchase discount 10% OFF
Description

Digital Multimeter 9999 T-RMS 3.5"LCD Color Display DC AC Voltage Capacitance Ohm Diode multimetro

DIY Supplies: ELECTRICAL

AC Voltage: 0~620V

Display Type: Digital display

DC Voltage: 0~620V

AC Current: N/A

Measuring Resistance Range: S7: 6K ohm / S9CL: 10M ohm / S10-11: 60M ohm

Certification: RoHS

DC Current: N/A

Measuring Capacitance Range: S9CL:6000uF / S10-11:99.99mF

Operating Mode: Auto Range

Model Number: S7/S9CL/S10/S11

Is Smart Device: YES

Measuring Inductance Range: N/A

Dimensions: 136*67*12mm

Operating Temperature: 0 - 40 ℃

Ture RMS: Yes.

MAX Display (ADMS7): 6000 Counts.(LCD)

MAX Display (S9CL/S10/S11): 9999 Counts.(EBTN)

Frequency(Hz): Yes.

Non-contact dangerous voltage detection: Yes.(48 - 1000V)

Neutral/Live Wire Judgment: Yes.

Continuity: Yes.

Capacitance: Yes.(S9CL/S10/S11)

Diode: YES.(S9CL/S10/S11)

Battery test: Yes.

Flashlight: Yes.

Data Hold: Yes.

Automatic shut-down: About 2 minutes.

Low voltage alert: Yes.

Backlight: Yes.(S9CL/S10/S11)

S7/S9CL Battery: 2*3V CR2032.

S10 Battery: 2*1.5 AAA Battery.

S11 Battery: Rechargeable lithium battery. ( Included )

Weigh: 110g.

Security Level: Comply with international safety standards.(CE certification)

Product introduction:

This series products belong to the latest generation of BSIDE brand smart multimeter!

The 3.5-inch large display design leaves an excellent user experience for buyers;The easy-to-use / Single Button to Switch design is well recognized by buyers;The ultra-thin body design is very portable.

Provide four products to choose from (S7 / S9CL / S10 / S11). Exquisite appearance / reliable performance / complete functions, can meet the needs of different groups of people, and is very suitable as a gift.

S7:LCD display;  S9CL:EBTN display;

S10/S11:EBTN color display.

S11 built-in 800mA lithium battery (supports rechargeable use)


Specifications:

Display: 6000 (S7) / 9999 counts (S9CL/S10/S11).

Screen: 3.5 inch.

DC Voltage: 0~620V ±(0.5%+3); Resolution: 0.001V.

AC Voltage: 0~620V ±(0.5%+5); Resolution: 0.001V.

Resistance:1Ω-999.9Ω ±(2.0%+5); 1kΩ-60MΩ ±(1.0%+3); Resolution: 0.11Ω.

Capacitance: 1nF-999.9nF ±(6.0%+5); 1uF-99.99mF ±(3.0%+3); Resolution: 0.001nF.

Frequency:
1Hz-1000Hz ±(1.0%+5) (ACV:2V-10V);
Resolution: 0.001Hz.
1KHz-60KHz ±(1.0%+5) (ACV:10V-620V); Resolution: 0.001Hz.

Duty Cycle: 0.1%-99.9% ±(3.0%+5) (ACV:2V-620V); Resolution: 0.1%.

Diode: Auto identify diode if less than 3.0V.

V-Alert(non-contact voltage detection): beep alarm sounds.

Live Check: alarm beep sounds, LCD screen display stripe.

Continuity: If the resistance is less than 30Ω, the beeper sounds.

S7/S9CL Power: C2302 x 2 (Built-in).
Size: 136*67*12mm.
Weight: 110g.

S10 Power: 1.5V (AAA) x 2.
S11 Power: Built-in rechargeable lithium battery.
Size: 147*85*42mm.
Weight: 180g.

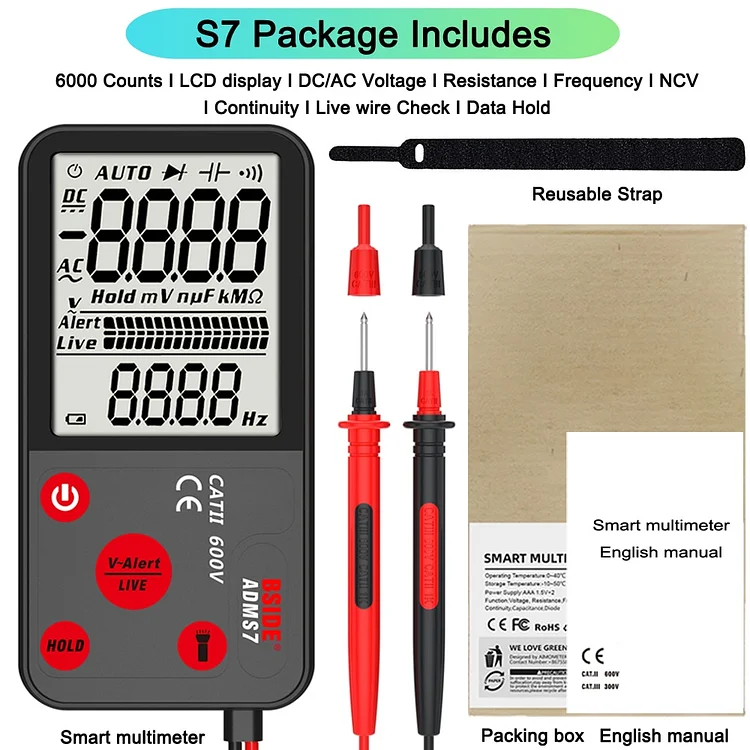

Package Includes:

1 * Multimeter.    1 * Test Lead.

1 * English user Manual.    1 * Packing Box.

1 * USB charging cable.(S11)

1 * EVA portable cloth bag.(S11)

1 * Protective shell.(S11)

Recommended Kits:

S11 Lithium-battery intelligent digital multimeter + X1 3-in-1 multi-function voltage detector.
